Electric Tractor

Tractor, which saves your money and the environment!
Electric Tractor

Electric Tractor ET 2000

Advantages

  • High power
  • Silent running
  • Zero emissions
  • Easy operation
  • Low operating cost

Possibilities of use

  • Garden landscaping
  • Forestry
  • Agriculture
  • Industry
  • Public government

Accessories

  • bedder
  • potato digger
  • cultivator
  • delivery track
  • trailer roller
  • The Electric Tractor
  • Why electric tractor?
  • Technical Specifications
  • Endurance Distance
  • Accessories
  • Comfort and equipment
  • Certificates
  • Gallery
  • Price list
  • Contacts
Slovenská verzia English version

Why to choose the electric tractor?

An eletric tractor is characteristic for higher efficiency
use of energy then petrol or diesel engines. AN Efficiency
of internal combustion engines is about 15-20%.
In comparison to an electric motors where it is
around 90%. Also the Combustion engine system
is very complex as it contains a great number
of precision components and other
necessary elements like engine
cooling, exhaust, brakes etc ...

The electric motor has a few separate
parts, so during the activity there is
no friction. Also its life, regardless of
bearings, is almost unlimited.

Driving the electric tractor is very simple. An acceleration and actual
ride are very comfortable and its speed control can be compared with
automatic transmission. The maximum starting torque from zero speed
is a delight for driving. Brake system is 90% sufficient from an electric
motor, which at the same time rerecharges the batteries. (recovers).

The another positive point about an electric tractor is minimum of noise that is made during an operation. Also zero emissions, therby surrounding is not loaded with undesirable effects.

Technical Specifications of Electrical Small Tractor

Technical Specifications of Electric Small Tractor

  • Technical specifications
  • Used batteries
  • Charging
Name: ELECTRIC SMALL TRACTOR
Type of device: ET 2000
Traction axle: back axle with differential
Direction of travel: forward / reverse
Max. standard speed: forward 0-15 Km/h / reverse 0-7 Km/h
Minimal turning diameter: 6,5m
Number of batteries: 2x12V DC 4x12V DC
Weight of the truck 380 kg 480 kg
Maximum weight of the towed load: 300kg
1300 kg – floor slope 0° (±2 ̐)
max. speed 7km/h
Profile 1
400kg
1300 kg – floor slope 0° (±2 ̐)
max. speed 7km/h
Profile 1
Max. gross weight (truck+superstructure / table+ cargo): 680 kg
1680 kg – floor slope 0° (±2 ̐)
max. speed 7km/h
Profile 1
880 kg
880 kg – floor slope 0° (±2 ̐)
max. speed 7km/h
Profile 1
Max. pull power: 2800N 3650N
Minimum length of rod wagon trailer: 700mm
Terms surface for driving directions, surface quality: light terrain
Wade: 150mm at speed 5 Km/h
Max. value of longitudinal slope: 10°(17%)
Size of barrier: max. 120 mm
Size of hollow: max. 120 mm
Operating temperature: -5°C to 40°C
Operating humidity: 30% – 80% without condensation
Sound power level: 66 dBA
Type battery: traction battery
Electric Tractor - dimensions
Electric Tractor - dimensions
Electric Tractor - dimensions
Electric Tractor - Battery

Type of batteries

The device is equipped with Hawker XFC batteries advice. They are valve-regulated lead-acid batteries. Valves batteries should never be opened !!! These batteries do not require refilling of distilled or demineralized water. This are a maintenance-free batteries.

An operation

A life of Battery depends on usage conditions (temperature and depth of discharge). The nominal operating temperature is 30 ° C. At temperatures above 45 ° C batteries should not be used. Battery capacity varies with temperature and decreases especially at temperatures below 0 ° C. A discharged battery can freeze.

Discharging

The number of cycles during the life of the Hawker XFC batteries will be maximum if the battery is discharged only to shallow depth and recharged as often as possible. Hawker XFC batteries are adapted to occasional charging.

Battery life

  • 1200 cycles at ZVEI of 60% or 800 cycles at 80% depth of discharge

The device is equipped with an anti- low battery, but only part of traction. If the information display shows one bar is necessary to charge the batteries. When leaving equipment, always turn off the main power switch to prevent unwanted discharge of the battery.

Charging

Batteries must be charged by charger approved especifically for Hawker XFC. For these batteries must be used by approved charger, if this is not observed, it might cause a limitation of battery life !!!

Storage

It is recommended to store the batteries fully charged in a cool, dry place, preferably at the temperature of 20 ° C.

More information about the batteries specified in the instructions for operation and maintenance advice Hawker XFC batteries.

The device must be charged by charger approved specifically for Hawker XFC. A Special charging profile was developed for charging batteries Hawker XFC, which enables faster charging. Between-recharging is also possible and it does not damage the batteries.

The charger is powered directly from the mains 240V.

Electric Tractor - Charging

Endurance Distance

Accessories

  • Summary of accessories

    Accessories of Electrical Small Tractor
  • The front ploughshare

    The front ploughshare for snow can be placed on the tractor with the front suspension by manual lift. The ploughshare has a robust design with interchangeable rubber lip. The angle can be set on both sides of 15 ° and 30 °. It is equipped with a tilting mechanism against its damage.

    Accessories of Electrical Small Tractor
  • Rear suspension

    The Universal rear hitch is used for attaching and lifting of passive accessories (Agzat, Vari) for example. Plow, potato digger, gates ...
    For attaching, the universal adjusting body is needed (is not supplied with rear suspension)

    Accessories of Electrical Small Tractor

Comfort and equipment

  • Equipped with electric small tractor
    Power battery
    2x12V DC (maintenance-free traction battery) (158 Ah) standard
    4x12V DC (maintenance-free traction battery) (316 Ah) option
    Charging
    HAWKER charger 24V 40A option
    Safety features equipment
    Disc brakes on the front axle standard
    Battery connector standard
    Electric parking brake standard
    Light standard
    Blinker standard
    The warning horn standard
    Lighthouse option
    Comfort
    Sprung, sliding seat with armrests standard
    Rear-view mirror standard
    Information display standard
    Radio (FM, MP3) option
    Open cab with wiper and windscreen washer option
    Other equipment
    Tension ball 50mm option
    Electrical socket trailer standard
    Hand hydraulic pump (max. Pressure 380 bar, capacity 12cm3) with fast-coupling (ISO size 12,5) option
    Voltage connector for accessories (max. Current 50A) option
  • Accessories of Electrical Small Tractor
  • Accessories of Electrical Small Tractor
  • Accessories of Electrical Small Tractor

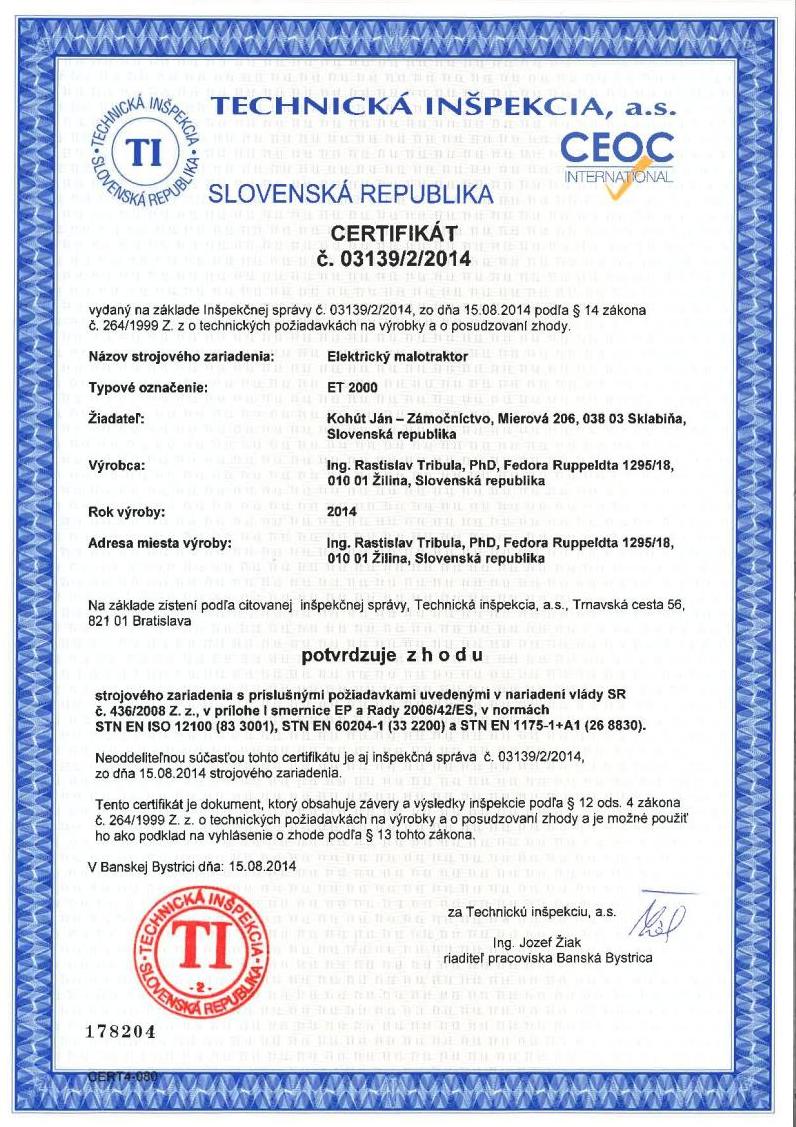

Certificates

Electric Tractor - Certificate
Electric Tractor - Certificate

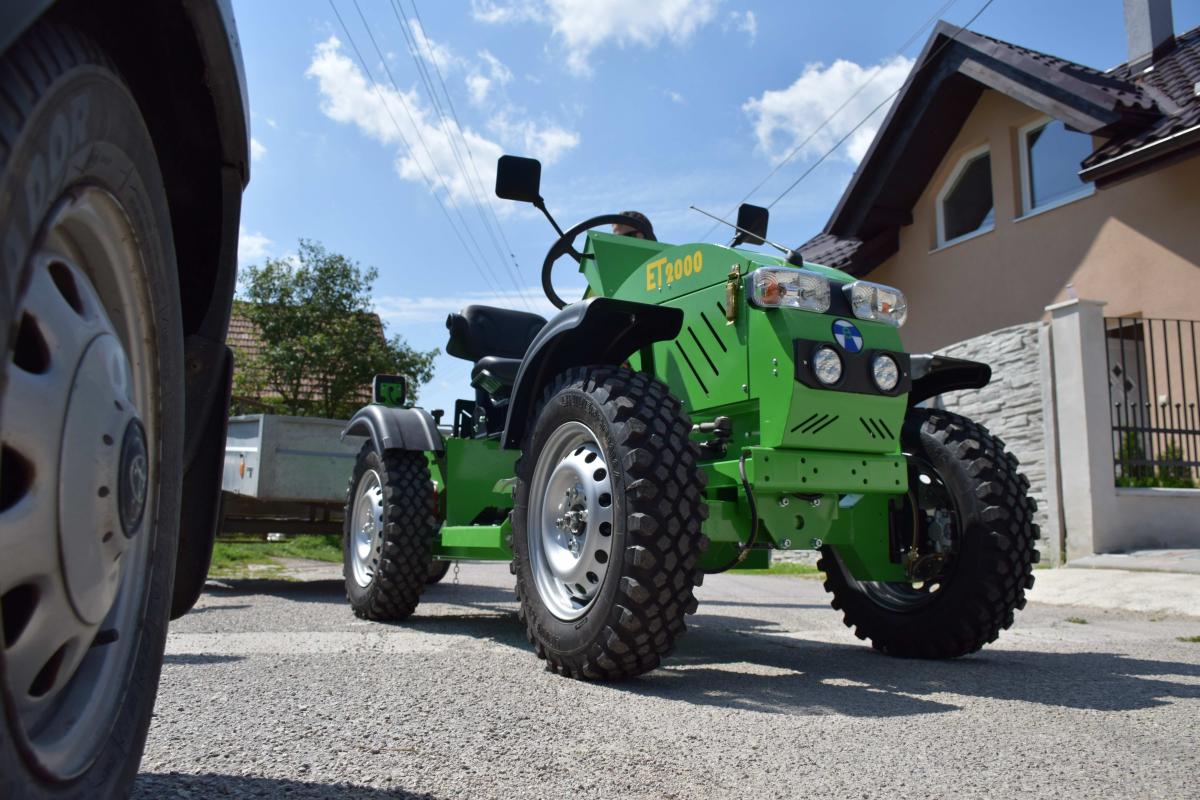

Gallery

  • Photo gallery
  • Video gallery
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Electric Tractor
  • Quiet operation of tractor

  • Ride on forest road

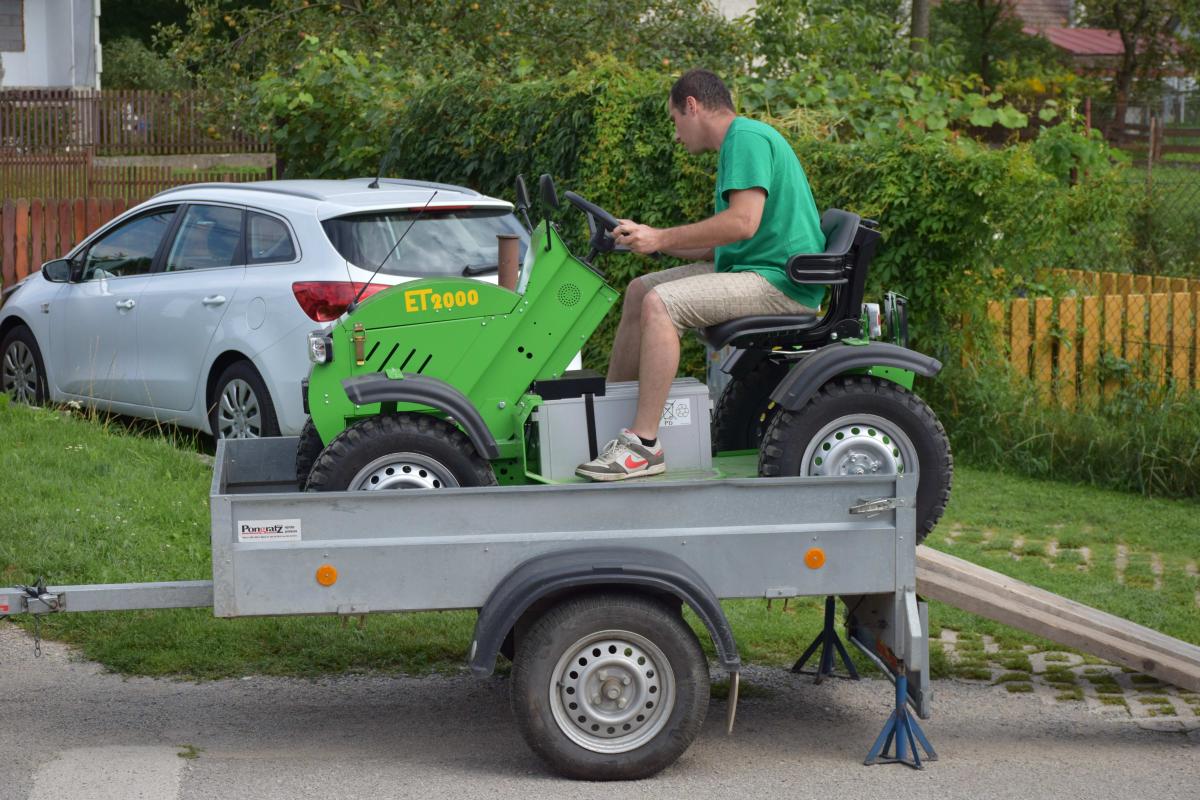

  • Transporting tractor

  • Ride on forest road

  • Driving with trailer

  • Trailer 600 kg

  • Snow plow

  • Plow

  • Mower

  • Mowing

Price list

Acctual price list of electric small tractor will gladly provide on our phone or via email.

Contacts

Ing. Rastislav Tribula, PhD
Fedora Ruppeldta 1295/18
010 01 Žilina
Slovak Republic

+421 907 933 648
